Introduction to parallel computing

Kyle Niemeyer

Oregon State University

2025-02-24

Introduction to parallel computing (in Python)

If you want more, check out CS 475/575 Parallel Programming.

Approaching parallelism

How do I do many things at once?
How do I do one thing faster?

Computer: perform many simultaneous tasks

Developer: determine dependencies between code and data

Up until now: serial thinking, like “x then y then z”

Benefit of parallelism: problems execute faster—sometimes much faster.

Downside to parallelism: harder to program, debug, open files, print to screen.

Why go parallel?

Important

First: wait until your code works and you need it.

The problem creates or requires too much data for a normal machine.
The sun would explode before the computation would finish.
The algorithm is easy to parallelize.
The physics itself cannot be simulated at all with smaller resources.

Scale and scalability

“Scale and Scalability” book cover

Scale and scalability

Scale: size of problem

Scale is proportional to number of processes \(P\) used, and thus the maximum degree of parallelism possible.

FLOPS: number of floating-point operations per second

Scaling up code

Scale up slowly—start with one processor, then 10, 100, etc.

scalability: how easy or hard it is to scale code

Strong scaling

strong scaling: how runtime changes as a function of processor number for a fixed total problem size.

speedup \(s\) ratio of time on one processor (\(t_1\)) to time on \(P\) processors (\(t_P\)):

\[ s(P) = \frac{t_1}{t_P} \]

Strong scaling

Efficient system: linear strong scaling speedup.

For example, PyFR computational fluid dynamics code:

Ref: P Vincent et al. “PyFR: Next-Generation High-Order Computational Fluid Dynamics on Many-Core Hardware.” 22nd AIAA CFD Conference. 2015.

Weak scaling

weak scaling: how runtime changes as a function of processor number for a fixed problem size per processor

sizeup \(z\) for a problem size \(N\):

\[ z(P) = \frac{t_1}{t_P} \times \frac{N_P}{N_1} \]

Weak scaling

Efficient system: linear sizeup. Or, constant time with additional processors/problem size.

For example, PyFR computational fluid dynamics code:

Ref: P Vincent et al. “PyFR: Next-Generation High-Order Computational Fluid Dynamics on Many-Core Hardware.” 22nd AIAA CFD Conference. 2015.

Amdahl’s Law

Some fraction of an algorithm, \(α\), cannot be parallelized.

Then, the maximum speedup/sizeup for \(P\) processors is:

\[ \max( s(P) ) = \frac{1}{\alpha - \frac{1-\alpha}{P}} \]

The theoretically max speedup is:

\[ \max(s) = \frac{1}{\alpha} \]

Types of problems

embarassingly parallel: algorithms with a high degree of independence and little communication between parts

Examples: summing large arrays, matrix multiplication, Monte Carlo simulations, some optimization approaches (e.g., stochastic and genetic algorithms)

Other algorithms have unavoidable bottlenecks: inverting a matrix, ODE integration, etc.

Not all hope is lost! Some parts may still benefit from parallelization.

Example: N-body problem

Generalization of the classic two-body problem that governs the equations of motion for two masses. From Newton’s law of gravity:

\[ \frac{dp}{dt} = G \frac{m_1 m_2}{r^2} \]

Equations of motion

\[ \begin{align} \mathbf{x}_{i,s} &= G \sum_{j=1, i \neq j} \frac{m_j (\mathbf{x}_{j,s-1} - \mathbf{x}_{i,s-1})}{||\mathbf{x}_{j,s-1} - \mathbf{x}_{i,s-1}||^3} \Delta t^2 + \mathbf{v}_{i,s-1} \Delta t + \mathbf{x}_{i,s-1} \\ \mathbf{v}_{i,s} &= G \sum_{j=1, i \neq j} \frac{m_j (\mathbf{x}_{j,s-1} - \mathbf{x}_{i,s-1})}{||\mathbf{x}_{j,s-1} - \mathbf{x}_{i,s-1}||^3} \Delta t + \mathbf{v}_{i,s-1} \end{align} \]

No parallelism

import numpy as np

def remove_i(x, i):
    """Drops the ith element of an array."""
    shape = (x.shape[0]-1,) + x.shape[1:]
    y = np.empty(shape, dtype=float)
    y[:i] = x[:i]
    y[i:] = x[i+1:]
    return y

def a(i, x, G, m):
    """The acceleration of the ith mass."""
    x_i = x[i]
    x_j = remove_i(x, i) # don't compute on itself
    m_j = remove_i(m, i)
    diff = x_j - x_i
    mag3 = np.sum(diff**2, axis=1)**1.5
    # compute acceleration on ith mass
    result = G * np.sum(diff * (m_j / mag3)[:,np.newaxis], axis=0)
    return result

def timestep(x0, v0, G, m, dt):
    """Computes the next position and velocity for all masses given
    initial conditions and a time step size.
    """
    N = len(x0)
    x1 = np.empty(x0.shape, dtype=float)
    v1 = np.empty(v0.shape, dtype=float)
    for i in range(N): # update locations for all masses each step
        a_i0 = a(i, x0, G, m)
        v1[i] = a_i0 * dt + v0[i]
        x1[i] = a_i0 * dt**2 + v0[i] * dt + x0[i]
    return x1, v1

def initial_cond(N, D):
    """Generates initial conditions for N unity masses at rest
    starting at random positions in D-dimensional space.
    """
    x0 = np.random.rand(N, D) # use random initial locations
    v0 = np.zeros((N, D), dtype=float)
    m = np.ones(N, dtype=float)
    return x0, v0, m

Generating initial conditions and taking one timestep:

x0, v0, m = initial_cond(10, 2)
x1, v1 = timestep(x0, v0, 1.0, m, 1.0e-3)

Driver function that simulates \(S\) time steps:

def simulate(N, D, S, G, dt):
    x0, v0, m = initial_cond(N, D)
    for s in range(S):
        x1, v1 = timestep(x0, v0, G, m, dt)
        x0, v0 = x1, v1

Measuring performance

import time
Ns = [2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096]
runtimes = []
for N in Ns:
    start = time.time()
    simulate(N, 3, 300, 1.0, 1e-3)
    stop = time.time()
    runtimes.append(stop - start)

import matplotlib.pyplot as plt
plt.plot(Ns, runtimes, 'o')
plt.grid(True)
plt.show()

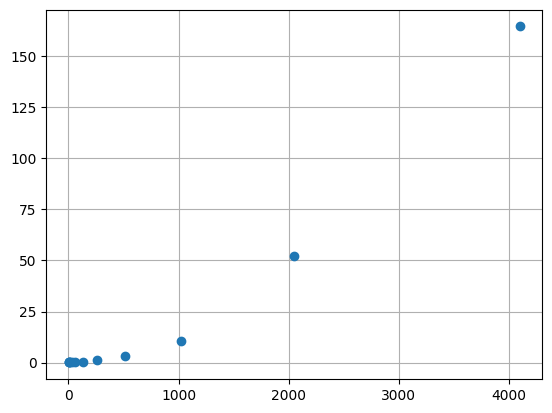

Does the problem scale quadratically?

Threads

Threads perform work and are not blocked by work of other threads.
Threads can communicate with each other through state

Threads: probably don’t use in Python.

All threads execute in the same process as Python itself.
Where to use? If you have high latency tasks where you can use spare time for another task (e.g., downloading a large file)

N-body with threading

from threading import Thread

class Worker(Thread):
    """Computes x, v, and a of the ith body."""
    def __init__(self, *args, **kwargs):
        super(Worker, self).__init__(*args, **kwargs)
        self.inputs = [] # buffer of work for thraeds
        self.results = [] # buffer of return values
        self.running = True # setting to False causes run() to end safely
        self.daemon = True # allow thread to be terminated with Python
        self.start()

    def run(self):
        while self.running:
            if len(self.inputs) == 0: # check for work
                continue
            i, x0, v0, G, m, dt = self.inputs.pop(0)
            a_i0 = a(i, x0, G, m) # body of original timestep()
            v_i1 = a_i0 * dt + v0[i]
            x_i1 = a_i0 * dt**2 + v0[i] * dt + x0[i]
            result = (i, x_i1, v_i1)
            self.results.append(result)

Thread pools

Expensive to create and start threads, so create pool that persists.

class Pool(object):
    """A collection of P worker threads that distributes tasks
    evenly across them.
    """
    def __init__(self, size):
        self.size = size
        # create new workers based on size
        self.workers = [Worker() for p in range(size)]

    def do(self, tasks):
        for p in range(self.size):
            self.workers[p].inputs += tasks[p::self.size] # evenly distribute tasks
        while any([len(worker.inputs) != 0 for worker in self.workers]):
            pass # wait for all workers to finish
        results = []
        for worker in self.workers: # get results back from workers
            results += worker.results
            worker.results.clear()
        return results # return complete list of results for all inputs

    def __del__(self): # stop workers when pool is shut down
        for worker in self.workers:
            worker.running = False

def timestep(x0, v0, G, m, dt, pool):
    """Computes the next position and velocity for all masses given
    initial conditions and a time step size.
    """
    N = len(x0)
    tasks = [(i, x0, v0, G, m, dt) for i in range(N)] # create task for each body
    results = pool.do(tasks) # run tasks
    x1 = np.empty(x0.shape, dtype=float)
    v1 = np.empty(v0.shape, dtype=float)
    for i, x_i1, v_i1 in results: # rearrange results (probably not in order)
        x1[i] = x_i1
        v1[i] = v_i1
    return x1, v1

def simulate(P, N, D, S, G, dt):
    x0, v0, m = initial_cond(N, D)
    pool = Pool(P)
    for s in range(S):
        x1, v1 = timestep(x0, v0, G, m, dt, pool)
        x0, v0 = x1, v1

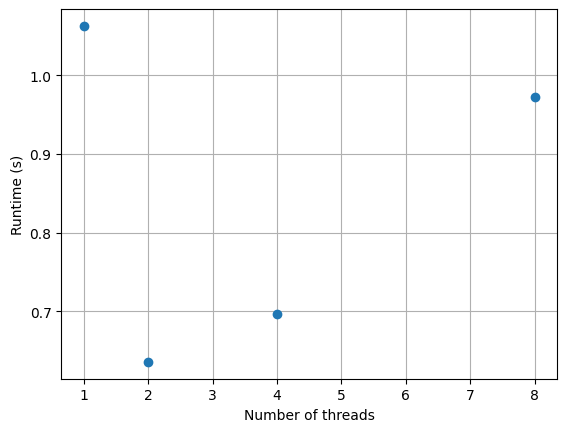

How does simulation perform as function of \(P\)?

import time

Ps = [1, 2, 4, 8]
runtimes = []
for P in Ps:
    start = time.time()
    simulate(P, 64, 3, 300, 1.0, 1e-3)
    stop = time.time()
    runtimes.append(stop - start)

import matplotlib.pyplot as plt
plt.plot(Ps, runtimes, 'o')
plt.xlabel('Number of threads')
plt.ylabel('Runtime (s)')
plt.grid(True)
plt.show()

Multiprocessing

More like threading available in other languages…

Can’t be used directly from interactive interpreter; main module must be importable by fork processes

Provides Pool class for us, used with powerful map() function.

import numpy as np
from multiprocessing import Pool


def remove_i(x, i):
    """Drops the ith element of an array."""
    shape = (x.shape[0]-1,) + x.shape[1:]
    y = np.empty(shape, dtype=float)
    y[:i] = x[:i]
    y[i:] = x[i+1:]
    return y


def a(i, x, G, m):
    """The acceleration of the ith mass."""
    x_i = x[i]
    x_j = remove_i(x, i) # don't compute on itself
    m_j = remove_i(m, i)
    diff = x_j - x_i
    mag3 = np.sum(diff**2, axis=1)**1.5
    # compute acceleration on ith mass
    result = G * np.sum(diff * (m_j / mag3)[:,np.newaxis], axis=0)
    return result


# function needs one argument
def timestep_i(args):
    """Worker function that computes the next position and velocity for the ith mass."""
    i, x0, v0, G, m, dt = args # unpack arguments to original function
    a_i0 = a(i, x0, G, m) # body of original timestep()
    v_i1 = a_i0 * dt + v0[i]
    x_i1 = a_i0 * dt**2 + v0[i] * dt + x0[i]
    return i, x_i1, v_i1


def timestep(x0, v0, G, m, dt, pool):
    """Computes the next position and velocity for all masses given
    initial conditions and a time step size.
    """
    N = len(x0)
    tasks = [(i, x0, v0, G, m, dt) for i in range(N)]
    results = pool.map(timestep_i, tasks) # replace old do() with Pool.map()
    x1 = np.empty(x0.shape, dtype=float)
    v1 = np.empty(v0.shape, dtype=float)
    for i, x_i1, v_i1 in results:
        x1[i] = x_i1
        v1[i] = v_i1
    return x1, v1


def initial_cond(N, D):
    """Generates initial conditions for N unity masses at rest
    starting at random positions in D-dimensional space.
    """
    x0 = np.random.rand(N, D) # use random initial locations
    v0 = np.zeros((N, D), dtype=float)
    m = np.ones(N, dtype=float)
    return x0, v0, m


def simulate(P, N, D, S, G, dt):
    x0, v0, m = initial_cond(N, D)
    pool = Pool(P)
    for s in range(S):
        x1, v1 = timestep(x0, v0, G, m, dt, pool)
        x0, v0 = x1, v1

How does `multiprocessing` scale?

import numpy as np
import time
from nbody_multiprocessing import simulate

Ps = np.array([1, 2, 4, 6, 8, 10, 12, 14, 16])
runtimes = []
for P in Ps:
    start = time.time()
    simulate(P, 512, 3, 300, 1.0, 1e-3)
    stop = time.time()
    runtimes.append(stop - start)

import matplotlib.pyplot as plt
plt.plot(Ps, runtimes, 'o', label='Measured runtime')
plt.plot(Ps, runtimes[0] / Ps, label='Ideal scaling')
plt.xlabel('Number of processes')
plt.ylabel('Runtime (s)')
plt.legend()
plt.grid(True)
plt.show()

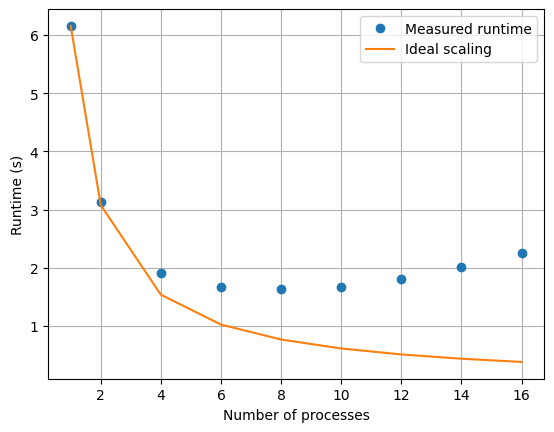

How does `multiprocessing` scale?

Other options for parallelism

MPI: Message-Passing Interface

Supercomputing is built on MPI.

MPI scales from hundreds of thousands to millions of processors.

Processes are called ranks and given integer identifiers; rank 0 is usually the “main” that controls other ranks. All about communication.

Can be used in Python and NumPy arrays with mpi4py

Numba

Numba is a just-in-time compiler for Python/NumPy

It translates Python functions to optimized machine code at runtime using the LLVM compiler—but does not require a separate compiler, just decorators

can automatically parallelize loops

from numba import jit
import random

@jit(nopython=True)
def monte_carlo_pi(nsamples):
    acc = 0
    for i in range(nsamples):
        x = random.random()
        y = random.random()
        if (x ** 2 + y ** 2) < 1.0:
            acc += 1
    return 4.0 * acc / nsamples

Takeaways

If your problem calls for it, consider parallelizing.

That said, do not jump here, when implementing smart NumPy array operations, appropriate data structures, or existing solutions may suffice.

Introduction to parallel computing

Introduction to parallel computing (in Python)

Approaching parallelism

Why go parallel?

Scale and scalability

Scale and scalability

Scaling up code

Strong scaling

Strong scaling

Weak scaling

Weak scaling

Amdahl’s Law

Types of problems

Example: N-body problem

Equations of motion

No parallelism

Measuring performance

Threads

Threads: probably don’t use in Python.

N-body with threading

Thread pools

Multiprocessing

How does multiprocessing scale?

How does multiprocessing scale?

Other options for parallelism

MPI: Message-Passing Interface

Numba

Takeaways

How does `multiprocessing` scale?

How does `multiprocessing` scale?
